15.5 Data Communications Networks
- Explain how four networking technologies—the Internet, the World Wide Web,intranets, and extranets—make data communication possible.
In addition to using networks for information sharing within the organization, companies use networks to communicate and share information with those outside the organization. All this is made possible by data communication networksLarge network used to transmit digital data from one computer to another using a variety of wired and wireless communication channels., which transmit digital data (numeric data, text, graphics, photos, video, and voice) from one computer to another using a variety of wired and wireless communication channels. Let’s take a closer look at the networking technologies that make possible all this electronic communication—in particular, the Internet (including the World Wide Web), intranets, and extranets.
The Internet and the World Wide Web
Though we often use the terms Internet and World Wide Web interchangeably, they’re not the same thing.See “The Difference Between the Internet and the World Wide Web,” Webopedia, http://www.webopedia.com/DidYouKnow/Internet/2002/Web_vs_Internet.asp (accessed June 2, 2006). The InternetGlobal network comprising smaller interconnected networks linking millions of computers around the world. is an immense global network comprising smaller interconnected networks linking millions of computers around the world. Originally developed for the U.S. military and later adapted for use in academic and government research, the Internet experienced rapid growth in the 1990s, when companies called Internet service providers (ISPs)Company, such as America Online, that links into the Internet infrastructure to connect paying subscribers. were allowed to link into the Internet infrastructure in order to connect paying subscribers. Today, ISPs, such as CompuServe, America Online, and MSN, enable us to use the Internet for e-mail, online conferencing, instant messaging, and real-time communication (chatting). These services also connect us with third-party providers of information, including news stories, stock quotes, and magazine articles.
The World Wide WebSubsystem of computers on the Internet that communicate with each other using a special language called HTTP. (or simply “the Web”) is just a portion of the Internet—albeit a large portion. The Web is a subsystem of computers that can be accessed on the Internet using a special protocol, or language, known as hypertext transfer protocol (HTTP). What’s the difference between the Internet and the Web? According to Tim Berners-Lee (one of the small team of scientists who developed the concept for the Web in 1989), the Internet is a network of networks composed of cables and computers. You can use it to send “packets” of information from one computer to another, much like sending a postcard. If the address on the packet is accurate, it will arrive at the correct destination in much less than a second. Thus, the Internet is a packet-delivery service that delivers such items as e-mail messages all over the globe. The Web, by contrast, is composed of information—documents, pictures, sounds, streaming videos, and so on. It’s connected not through cables, but rather through hypertext links that allow users to navigate between resources on the Internet.Richard T. Griffiths, “Chapter Two: The World Wide Web (WWW),” The History of the Internet, http://www.let.leidenuniv.nl/history/ivh/chap2.htm (accessed June 2, 2006).
Because it’s driven by programs that communicate between computers connected to the Internet, the Web couldn’t exist without the Internet. The Internet, on the other hand, could exist without the Web, but it wouldn’t be nearly as useful. The Internet itself is enormous, but it’s difficult to navigate, and it has no pictures, sounds, or streamed videos. They exist on computers connected to the Web, which also makes it much easier to retrieve information. The creation of Web browsersSoftware (such as Internet Explorer) that locates and displays Web pages.—software, such as Microsoft’s Internet Explorer and Netscape Navigator, that locates and displays Web pages—opened up the Internet to a vast range of users. More than 60 percent of individuals in the United States age eighteen and older use the Internet regularly.Rob McGann, “People Aged 55 and Up Drive U.S. Web Growth,” ClickZ Network, http://www.clickz.com/stats/sectors/traffic_patterns/article.php/3446641 (accessed June 2, 2006). So, who’s in charge of the Web? No one owns it, but an organization called the World Wide Web Consortium (W3C) oversees the development and maintenance of standards governing the way information is stored, displayed, and retrieved on it.“World Wide Web,” Wikipedia, http://en.wikipedia.org/wiki/World_Wide_Web (accessed June 2, 2006).
The Technology of the Web

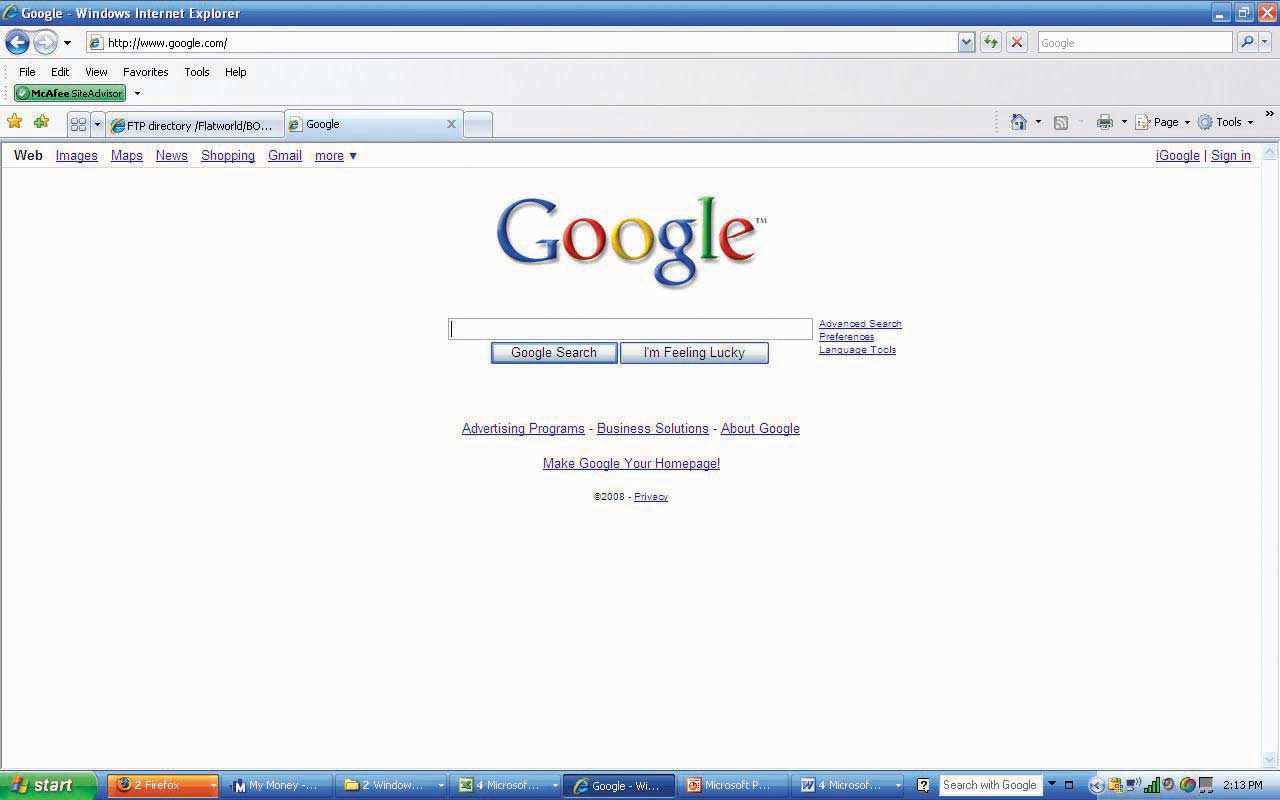

Figure 15.9 Google
Let’s look a little more closely at some of the technologies that enable us to transmit and receive data over the Web. Documents on the Web are called Web pages, and they’re stored on Web sites. Each site is maintained by a Webmaster and opens with a home page. Each Web page is accessed through a unique address called a uniform resource locator (URL). For example, if you want to find statistics on basketball star Shaquille O’Neal, you could type in the URL address http://www.nba.com/playerfile/shaquille_oneal. The prefix http:// is the protocol name, http://www.nba.com the domain name, playerfile the subdirectory name, and shaquille_oneal the document name (or Web page). A computer that retrieves Web pages is called a Web serverComputer that retrieves Web pages.. A search engineSoftware program that scans Web pages for specified kewords and provides a list of documents containing them. is a software program that scans Web pages containing specified keywords and provides a list of documents containing them. The most popular search engine is Google; others include Yahoo!, Ask, AllTheWeb, and Hotbot.
Intranets and Extranets
What’s the difference among the Internet, an intranet, and an extranet? It depends on who can and can’t access the information on the network. The Internet is a public network that anyone can use. A company’s intranetPrivate network using Internet technologies that are available only to employees., on the other hand, is a private network using Internet technologies that’s available only to employees; access is controlled by a software program called a firewallSoftware program that controls access to a company’s intranet.. The information available on an intranet varies by company but may include internal job postings, written company policies, and proprietary information, such as price lists meant for internal use only.
An extranetIntranet that’s partially available to certain parties outside the organization. is an intranet that’s partially available to certain parties outside the organization. Say, for example, you’ve posted the following information on your intranet: company policies, payroll and benefit information, training programs, parts specifications and inventories, and production schedules. To allow suppliers to bid on contracts, you might give them access to sections of the site disclosing parts specifications, inventories, and production schedules. All other sections would be off-limits. You’d control access to employee-only and supplier-accessible sections by means of usernames and passwords. As you can see from Figure 15.10 "How an Extranet Works", which illustrates some of the connections made possible by an extranet, access can be made available to customers and business partners, as well.
Figure 15.10 How an Extranet Works
The level of e-commerceBusiness conducted over the Internet.—conducting business over the Internet—varies by company. Some companies, such as Amazon.com, rely on the Internet for their existence. Others, especially smaller firms, have yet to incorporate the Internet into their business models, but these companies belong to a dwindling minority: more than 60 percent of small companies and 90 percent of large companies have Web sites, and a third of the companies that maintain Web sites sell products through them.Don Jones, Mark Scott, and Rick Villars, E-Commerce for Dummies (New York: Wiley, 2001), xxvi. Larger companies now find that they must do business over the Internet, including selling and buying goods.
Why Business Uses the Internet
Businesses use the Internet for four purposes: presenting information, selling products, distributing digital products, and acquiring goods and services.
By posting a Web site, a company can tell people about itself, its products, and its activities. Customers can also check the status of orders or account balances. Information should always be current, complete, and accurate. Customers should be able to find and navigate the site, which should be able to accommodate them during high-use periods.
Selling over the Internet—whether to individuals or to other businesses—enables a business to enlarge its customer base by reaching buyers outside its geographical area. A company selling over the Internet must attract customers to its site, make the buying process simple, assure customers that the site is secure, and provide helpful information.
Distributing Digital Products
Some companies use the Internet to sell and deliver such digital products as subscriptions to online news services, software products and upgrades, and music and video products. In these businesses, the timely delivery of products is crucial. Sales of digital products over the Internet are expected to increase substantially in the future, particularly sales of digital music.Matt Phillips, “Digital Music Services Hit First Major Milestone as Downloads Outsell Physical Formats for the First Time,” British Phonographic Industry, September 2, 2004, http://www.bpi.co.uk/index.asp?Page=news/stats/news_content_file_743.shtml (accessed June 2, 2006).
Acquiring Goods and Services
E-purchasing (which we introduced in Chapter 11 "Operations Management in Manufacturing and Service Industries") saves time, speeds up delivery, reduces administrative costs, and fosters better communications between a firm and its suppliers. Most importantly, it cuts the costs of purchased products because it’s now feasible for buyers to request competitive bids and do comparative shopping. Many companies now use a technology called electronic data interchange (EDI)Computerized exchange of business transaction documents. to process transactions and transmit purchasing documents directly from one IS to another. Figure 15.11 "EDI and Value-Added Networks" shows an EDI system at a company that subscribes to a value-added network—a private system supplied by a third-party firm—over which it conducts a variety of transactions.
Figure 15.11 EDI and Value-Added Networks
The Virtual Company
Imagine a company that retails products for schoolteachers over the Internet—for example, books, software, and teaching supplies purchased from various manufacturers and distributors. It would need facilities to store inventories and personnel to handle inventories and fill customer orders. But what if this company decided to get out of the traditional retail business? What if it decided instead to team up with three trading partners—a book publisher, a software developer, and a manufacturer of office supplies? Our original company could re-create itself as a Web site for marketing the books, software, and supplies provided by its partners, without taking physical possession of them. It would become a virtual companyCompany without a significant physical presence that relies on third parties to produce, warehouse, price, and deliver the products it sells over the Internet.. Its partners would warehouse their own products and furnish product descriptions, prices, and delivery times. Meanwhile, the virtual company, besides promoting all three lines of products, would verify customer orders and forward them to its partners, who would ship their own products directly to customers. All four partners would be better off, because they’d be competing in a business in which none of them could compete by itself. This business approach has allowed Spun.com, a CD Internet retailer, to avoid carrying the $8 million inventory that it would have needed to support its sales. Rather than hold its own inventory, Spun.com merely passes the orders on to Alliance Entertainment (a home entertainment products wholesale distributor), which ships them directly to customers.“Can E-Tailers Find Fulfillment with Drop Shipping?” Research at Penn, http://www.upenn.edu/researchatpenn/article.php?21&bus (accessed June 2, 2006).
- Data communication networks transmit digital data from one computer to another computer using a variety of wired and wireless communication channels.
- One such network, the Internet, is an immense global network of smaller interconnected networks linking millions of computers.
- By connecting paying subscribers into the Internet infrastructure, a company called an Internet service provider (ISP) provides services, such as e-mail, online conferencing, and instant messaging.
- A large portion of the Internet, the World Wide Web (“the Web”), is a subsystem of computers that can be accessed by means of a special protocol known as hypertext transfer protocol (HTTP).
- Computers on the Web are connected with hypertext links that permit users to navigate among Internet resources.
- A Web browser is software that locates and displays Web pages.
- Though the Web couldn’t exist without the Internet, it’s the Web that provides such multimedia material as pictures, sounds, and streaming videos.
- Businesses use the Internet for four purposes: presenting information, selling products, acquiring goods and services, and distributing digital products.
- While the Internet is a public network that anyone can use, a company’s intranet is a private network that’s available only to its employees; access is controlled by a software program called a firewall.
- An extranet is an intranet that’s partially available to certain outside parties, such as suppliers.
- If asked by your instructor, how would you explain the difference between the Internet and the World Wide Web?
Identify ten specific ways in which your college uses the Internet.
